Electromagnetic Vibrator

Features

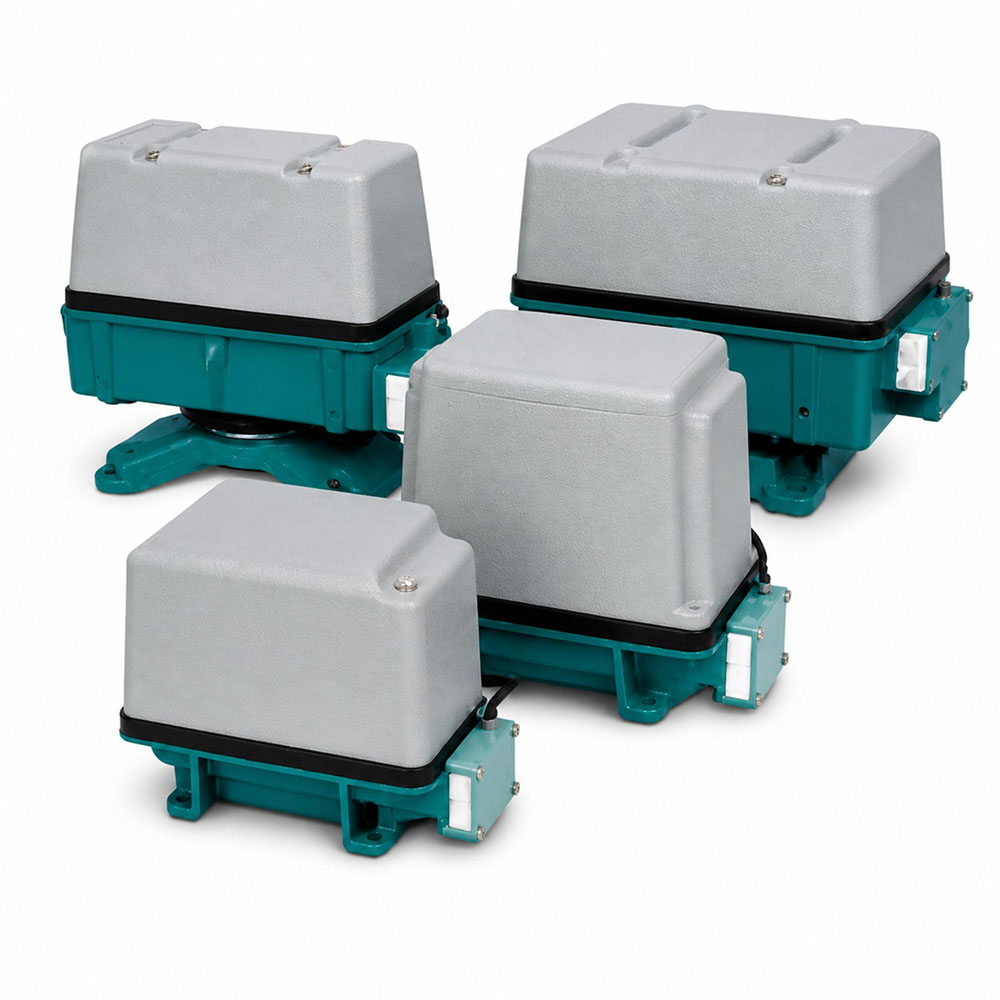

The Tyco Electromagnetic Vibrator provides effective and economical method of maintaining free flow of stubborn materials from bins and hoppers and through chutes.

The Electromagnetic Vibrators, where the amplitude may be adjusted from full vibration to a fine tremor, keeps the particles agitated in a free flowing state. Each Vibrator is furnished with a controller having an operating switch, which set up a flow pattern of powerful pulsating vibrations.

The Electromagnetic design of Tyco Vibrators eliminates mechanical and pneumatic parts - bearings, belts, chains, valves, hose or motor. These are built for trouble free duty with a minimum of maintenance.

Specifications

Particulars	Model T 5	Model T 7	Model T 20
Vibrations per minute	3000	3000	3000
Maximum input - amperes	2.6	3	7
Supply 50 cycles, A.C.	220/240 volts	400/440 volts	400/440 volts
Approx. Net Weight, Vibrator	25 Kgs	76 kgs.	127 Kgs
Approx. Net Weight, Controller	15 Kgs	15 kgs.	15 Kgs
