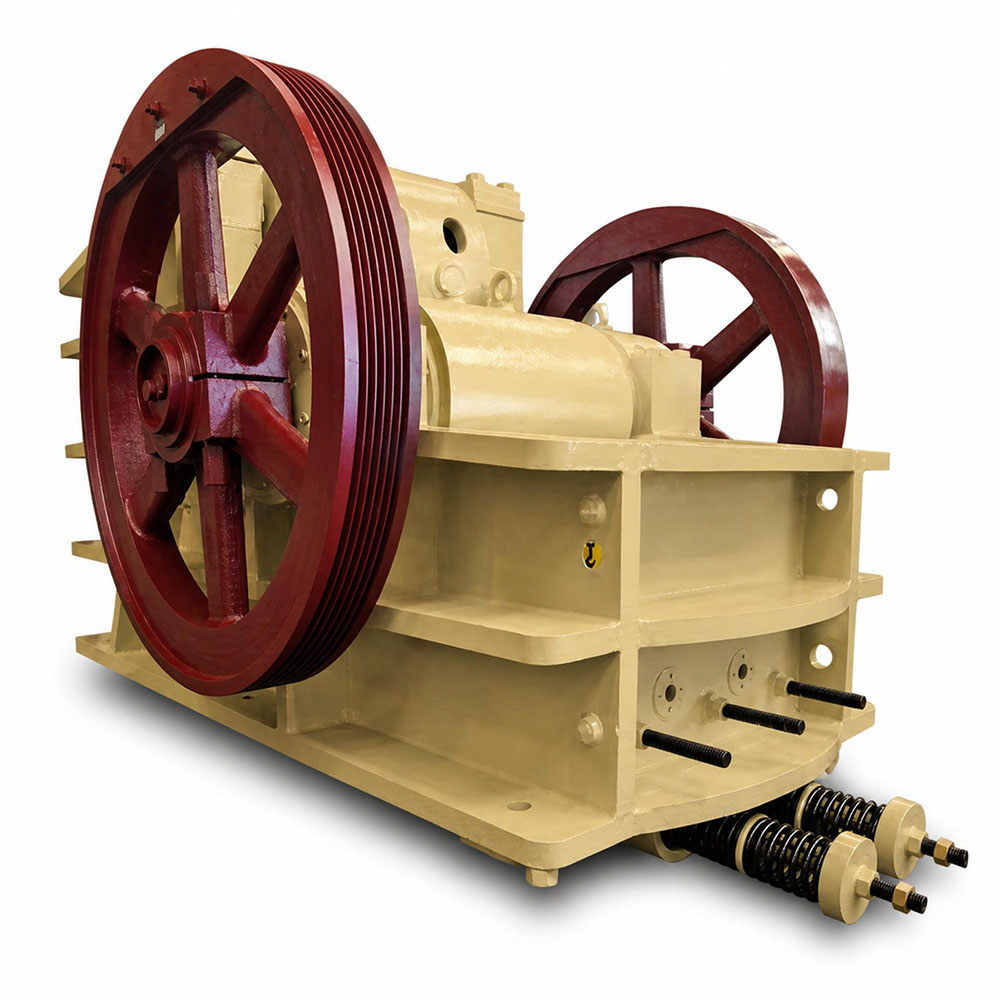

Jaw Crusher

Features

• Rugged Steel Body
• Jaw Plates of Wear-Resistant Manganese Steel
• Special Steel Eccentric Shaft with Heavy –Duty
• Double-Toggle Attachment Superior load distribution
• Spray Oil Lubrication System Guarantees safe operation at high speeds
• Requires lower horse power cheaper squirrel cage
• Maximum Crushing Range-13MM to 62MM

Advantages

A substantially longer jaw life is achieved as a result of the unique jaw geometry. The centerline of crushing zone is aligned with the hinge pin center and the material to be crushed is held firmly by the straight line crushing action of the jaws. This principle uses pure compression to crush, eliminating rubbing within the crushing chamber. Double toggle action ensures crushing even on the down stroke and provides maximum mechanical advantage to the eccentric. Lighter pitman and toggles reduce inertia, and enables a greater through put to be achieved.

Model	C 127	C 169	C 2213
Size Of Machine	300mm x 175mm  (12" x 7")	400mm x 225mm  (16" x 9")	558mm x 330mm
Maximum Feed Size Approx. Capacity	140mm	180mm	250mm
Jaw Setting	13mm 25mm 62mm	13mm 25mm 62mm	13mm 25mm 62mm
MT/hour	6       9       25	8     13     31	10    16   40

With larger Jaw settings, corresponding higher capacities are obtained

Dimension and data given above are subject to change without notice

Model	C 127	C 169	C 2213
Electric Motor required	20 HP	25 HP	40 HP
Approx. Space requirement	1.36 M x 1 M x 1.18 M height	1.56 M x 1.1M x 1.33 M height	1.7 M x 2.6 M x 1.9 M height

Application

• Gravel
• Blast Furnace Slag
• Quartz
• Feldspar
• Iron Ore
• Coal & Coke
• Stone
• Lime Stone
• Dolomite
• Ferro Alloys
• Bauxite
• Granite
• Barytes
• Betonies
• Magnesite
• Rock Phosphate
• Soap Stone
