Pulveriser

Download Catalog

Features

  • Combines ruggedness, dependability, high efficiency and automatic operation.
  • Dust free, completely integrated system for grinding and classifying.
  • Assured low cost operation with consistent uniform product.
  • Operates at peak efficiency and highest tonnage per horsepower.
  • Flexible control over product fineness.
  • Requires minimum attention other than ordinary maintenance.

Versatile in Application

The Tyco Pulverisers meet most capacity requirements and lend themselves to a wide degree of adjustment with fineness of the finished products ranging from about 60 mesh to bulk passing through 300 mesh depending to a considerable extent on the particular material being handled.

Unlike an ordinary hammer mill it has no screens to break, wear out or clog. Tyco Pulveriser combine grinding, classifying, and conveying all in one single unit.

Specification

ModelHP–8HP–18HP–34HP-40
Size of Chamber 20” 32” 40” 42”
Number of Hammers 8 18 18 18
Mill RPM 3545 1770 1500 1570
Motor HP 20 40/50 60/75 75

Output

The output capacity of Tyco Pulveriser varies widely depending on the type of material, feed size and moisture content. Given below is the table indicating the pulverizing capacity on average basis however the capacity figures will vary from case to case depending upon several factors. These figures are meant for guidance only. The output of pulverizer will reduce with the increase in fineness.

Material For GrindingSize of the Machine & Pulverizing Capacity Kg. Per Hour Fineness of 100 to 325 Mesh
20” 32” 40” 42”
Bauxite 200 500 750 850
Bentonite 300 750 1050 1200
Besan 250 550 850 1100
Calcite 250 550 800 900
Chalk 250 600 950 1100
China Clay 250 600 900 1150
Chromites 100 200 300 400
Coal 250 500 750 850
Graphite 200 500 800 900
Gypsum 250 500 850 1000
Hydrated Lime 300 600 900 1050
Lime Stone 300 600 900 1050
Ochre's 250 600 850 1050
Pyrophyllite 250 600 850 1050
Soap Stone 300 700 1000 1200
Magnesite 200 500 750 850
Herbs 60 120 175 220
Dolomite 350 750 1050 1200
Turmeric - 250 400 450

Scope Of Supply

test image

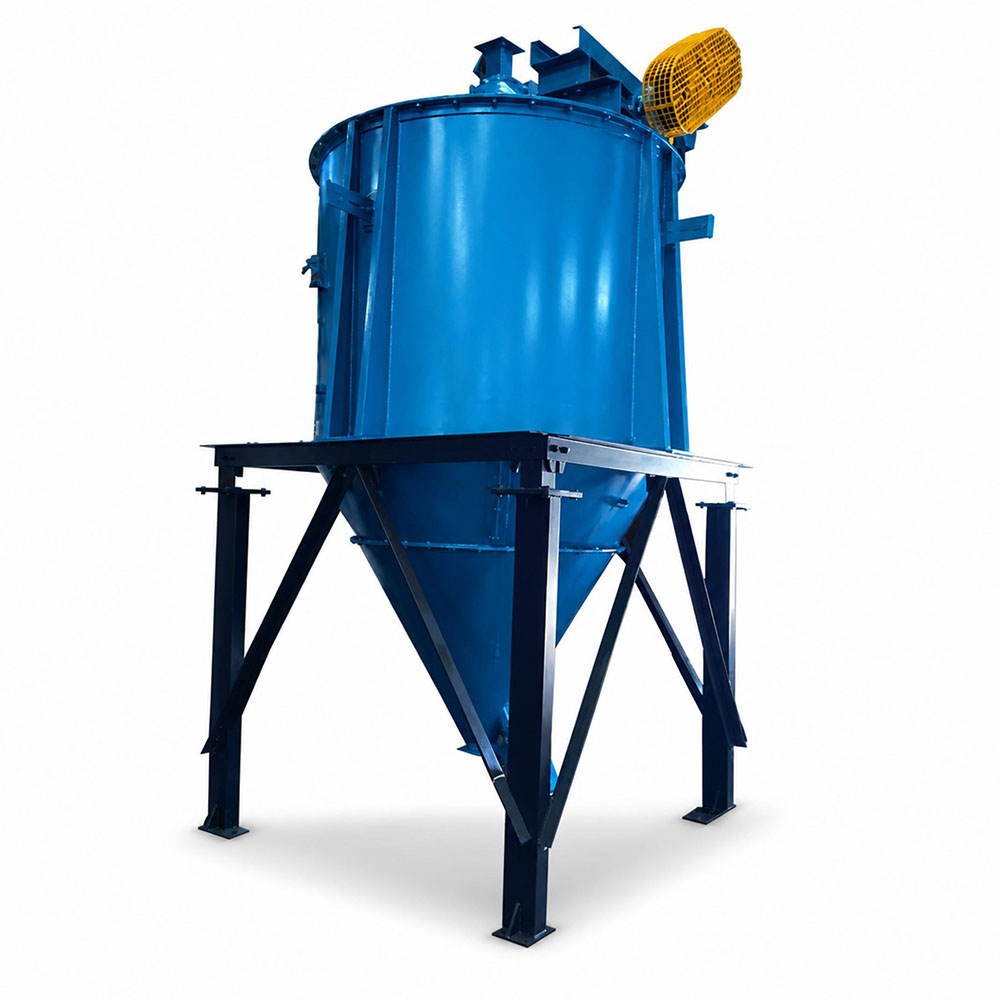

The Pulveriser is supplied with Air Cyclone and dust collector for close Cycle operation. Structure for the classifier and electrical are supplied as optional item.

Space Requirement for Models

  • Model HP–34 : 4600 mm X 3400 mm X 5570 mm height.
  • Model HP–18 : 3980 mm X 2900 mm X 5070 mm height.
  • Model HP–8 : 2500 mm X 2800 mm X 4000 mm height.
  • Model HP-40 : 4400mm X 3500 mm X 5550 mm height.

Electricals Required

  • HP–34 : 60 HP, 1440 RPM. TEFC, slip ring motor with starter / rotor starter.
  • HP–18 : 40 HP, 1440 RPM. TEFC, slip ring motor with starter / rotor starter.
  • HP–08 : 20 HP, 1440 RPM, TEFC, slip ring motor with starter / rotor starter.
  • HP-40 : 75 HP, TEFC Induction Motor with Starter.

Comparison Of Mesh & Micron Size

TylerMeshMicronSizeTylerMeshMicronSizeTylerMeshMicronSize
2 11100 42 355 180 84
3 7090 45 323 200 74
4 5160 48 295 230 65
5 4040 50 279 240 63
6 3350 60 221 250 61
7 2870 65 203 270 53
8 2460 70 185 300 46
10 1900 80 173 325 43
12 1520 90 150 400 35
14 1300 100 140 500 28
16 1130 110 130 600 23
18 980 120 117 800 18
20 864 125 113 1000 13
24 701 130 109 1340 10
28 577 140 107 2000 6.5
30 535 150 104 5000 2.6
32 500 160 96 8000 1.6
35 447 170 89 10000 1.3
40 381 175 86 12700
